Wire meshes

Wire meshes are discontinuous structures which are composed by a connection of distinct wire elements with a specific regular pattern (e.g. diamond, hexagonal, etc..).

They are worldwide used as protective structures in hazardous sloping regions and mining areas, however, their mechanical behaviour still be poorly understood. Wire meshes have different applications ranging from very dynamic phenomena such as debris flows and rockfall (rockfall fences) to quasi-static conditions as, for instance, slope stabilization (cortical meshes) and river erosion (gabions).

DEM modelling of meshes

The discrete element method (DEM) is here applied to get an insight into the mechanical behaviour of such structures. The mesh is simulated as an ensemble of spheres connected by remote interactions or as a connection of cylindrical elements .

The numerical model has been validated on experimental tests and extended to simplified in-situ applications. Varying the geometry of the retaining system (fixities, dimension, inclination), the retained material (type, grains size, constitutive model at the contact) and the mesh type several numerical simulations were carried out in order to enhance the comprehension of the in-field mechanical response of wire mesh systems.

Here is a link to a design tool for anchored drapery meshes

Pol, A., & Gabrieli, F. (2021). Discrete element simulation of wire-mesh retaining systems: An insight into the mechanical behaviour. Computers and Geotechnics, 134, 104076. https://doi.org/10.1016/j.compgeo.2021.104076
Pol, A., Gabrieli, F., & Brezzi, L. (2021). Discrete element analysis of the punching behaviour of a secured drapery system: from laboratory characterization to idealized in situ conditions. Acta Geotechnica. https://doi.org/10.1007/s11440-020-01119-z
Marchelli, M., Pol, A., Peila, D., & Gabrieli, F. (2023). Towards a Hybrid Design Approach of Anchored Drapery Systems. Geosciences, 13(5), 147. https://doi.org/10.3390/geosciences13050147

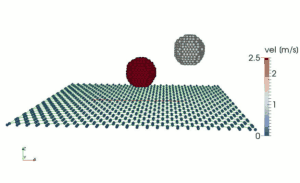

Impact of two blocks on a double-twisted exagoonal wire mesh (Gabrieli, Thoeni, Martin)

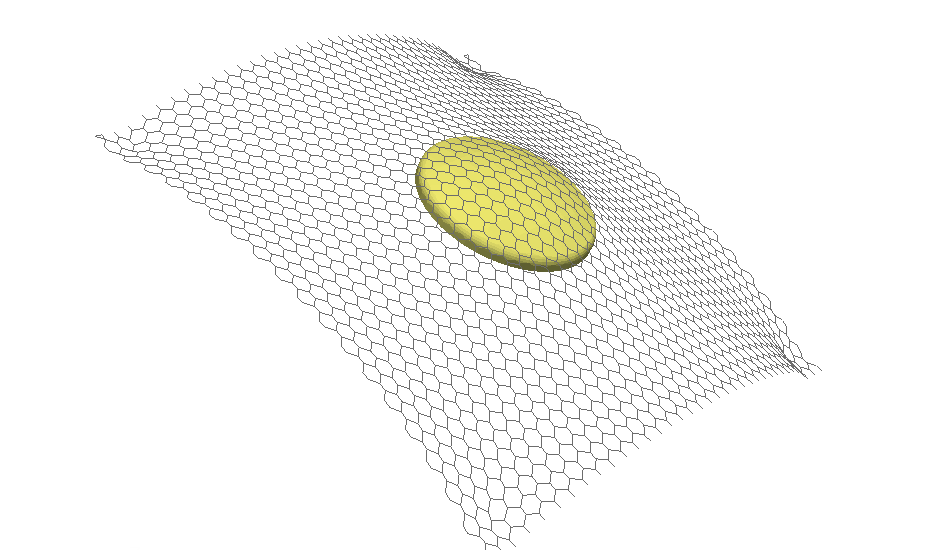

Punch test on a mesh panel .

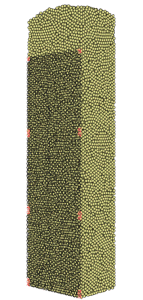

3D in-situ mesh panel .

We also focused on the mesh-soil-plate interaction with reference to special laboratory punch test .
